Hollow Core Linear Voice Coil Motors, HVCM-025-022-003-01
Continuous Force: 16.9 oz (4.7 N), Stroke: 0.375 in (9.5 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||||
|
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-025-022-003-01 | 0.375 | inch | 16.9 | oz | 53.5 | oz | 0.875 | inch | 0.125 | inch |
Datasheet in PDF  |
9.5 | mm | 4.7 | N | 14.9 | N | 22.2 | mm | 3.2 | mm |

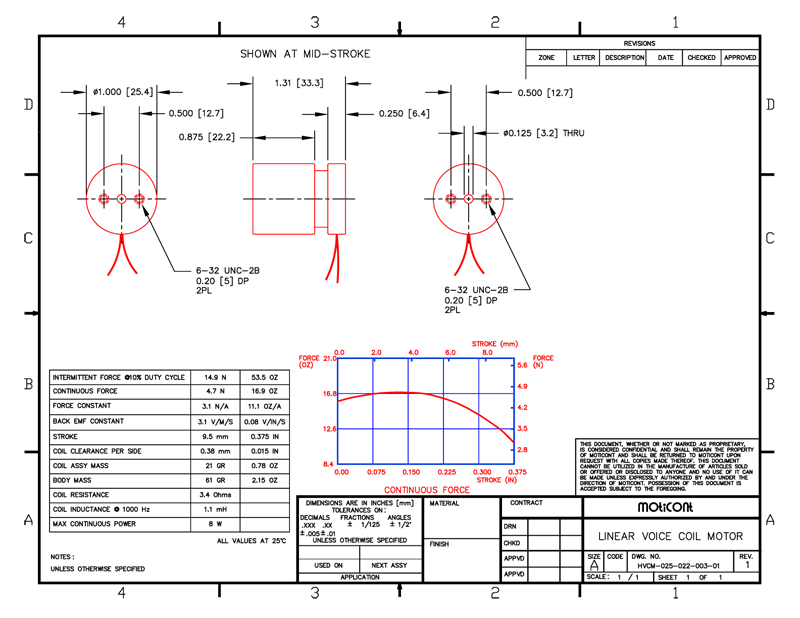

Drawing quick view
 |
Download 3D STEP | |||||||||
