Linear Motor Actuators
The Linear Motor Actuator is used in positioning applications where high speed and high accuracy are required.
The actuator may be used in the following industries; Semiconductor, Disk Drive, Automotive, Medical,
Industrial, Optical, Test and Manufacturing.
Voice coil motors
do not need commutation and using a position sensor, positioning accuracies of
less than one micron or 0.00004 inches are achievable.
Each actuator is integrated with a quadrature position sensor,
inner limit, outer limit and home switch.
Customized solutions can be provided upon request.
|
| |
- High Acceleration
- High Speed
- High Accuracy
- Cog Free
- High Repeatability
- Independent Multiple Coil Operation with Overlapping Trajectories
- No Metal-to-Metal Contact, Virtually Maintenance Free
- Modular Magnet Tracks
- Trapezoidal or Sinusoidal Commutation
- Increased throughput, a Function of High Acceleration
|
 |
|
Linear Motor Actuator LMA-051-051-01
- Range of Motion: 0.7” (17.8 mm) Max
- Continuous Force: 6.0 lb (26.7 N)
- Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
- Optional Return Spring
- Quadrature Optical Encoder with Optional Differential Outputs
- Built-in Home Switch
|
LMA-051-051-01
Drawing quick view  |
|
|
|
|
 |
|
Linear Motor Actuator LMA-051-064-01
- Range of Motion: 1.2” (30.5 mm) Max
- Continuous Force: 6.4 lb (28.4 N)
- Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
- Optional Return Spring
- Quadrature Optical Encoder with Optional Differential Outputs
- Built-in Home Switch
|
LMA-051-064-01
Drawing quick view |
|
|
| |
 |
|
Linear Motor Actuator LMA-051-089-01
- Range of Motion: 2.2” (55.9 mm) Max
- Continuous Force: 6.0 lb (26.7 N)
- Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
- Optional Return Spring
- Quadrature Optical Encoder with Optional Differential Outputs
- Built-in Home Switch
|

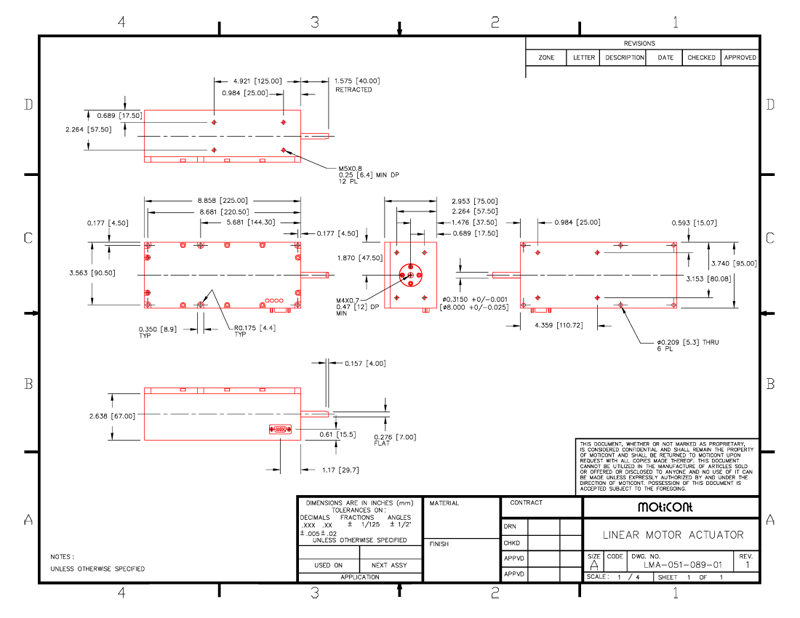

LMA-051-089-01
Drawing quick view
|
|
| | |
 |
|
Linear Motor Actuator LMA-051-165-01
- Range of Motion: 5.2” (132.1 mm) Max
- Continuous Force: 3.2 lb (14.2 N)
- Intermittent Force: 10.1 lbs (44.9 N) at 10% duty cycle
- Optional Return Spring
- Quadrature Optical Encoder with Optional Differential Outputs
- Built-in Home Switch
|
LMA-051-165-01
Drawing quick view |
|
|
|
|
