Linear Voice Coil Stage, VCDS-051-064-01-01
Continuous Force: 6.4 lb (28.4 N), Range of Motion: 1.20” (30.5 mm),
Resolution: 1 micron
 |
 |
 |
 |
 |
|
Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
|
|
|
VCDS-051-064-01-01 |
|||
Datasheet in PDF

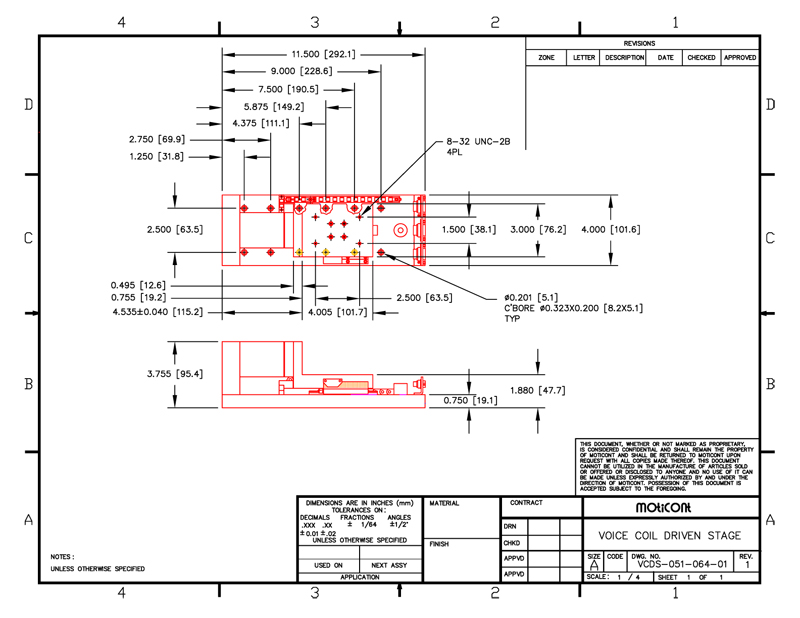

Drawing quick view  |
|||
| STAGE SPECIFICATIONS | ||||
|
Intermittent Force @ 10% Duty Cycle |
92.9 | N |
20.9 |
lb |
| Continuous Force | 29.4 | N |
6.6 |
lb |
|
Force Constant |
9.6 | N/A |
2.2 |
lb/A |
| BACK EMF Constant | 9.6 | V/M/S |
0.24 |
V/in/S |
|
Stroke |
31.8 | mm |
1.25 |
in |
| Moving Mass | 760 | gr |
26.8 |
oz |
|
Total Mass |
3.8 | kg |
8.4 |
lb |
|
Coil Resistance |
3.9 | Ohm | ||
| Coil Inductance at 1000 Hz | 1.7 | mH | ||
Continuous Power |
36 | W |
| Pin Assignment |
|
Pin |
Description |
|
1 |
+5 VDC Power |
|
2 |
A- Channel of Quadrature Encoder |
|
3 |
B+ Channel of Quadrature Encoder |
|
4 |
A+ Channel of Quadrature Encoder |
|
5 |
Return for +5 VDC Power |
|
6 |
Reference Signal, Active High |
|
7 |
B- Channel of Quadrature Encoder |
|
8 |
Motor Minus |
|
9 |
Motor Plus |
