Linear Voice Coil Stage, VCDS-051-089-01-13
Continuous Force: 6.0 lb (26.7
N), Range of Motion: 2.20” (55.9 mm), Resolution: 13 microns
 |
 |
 |
 |
 |
Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
|
||
| VCDS-051-089-01-13 |
|||
Datasheet in PDF

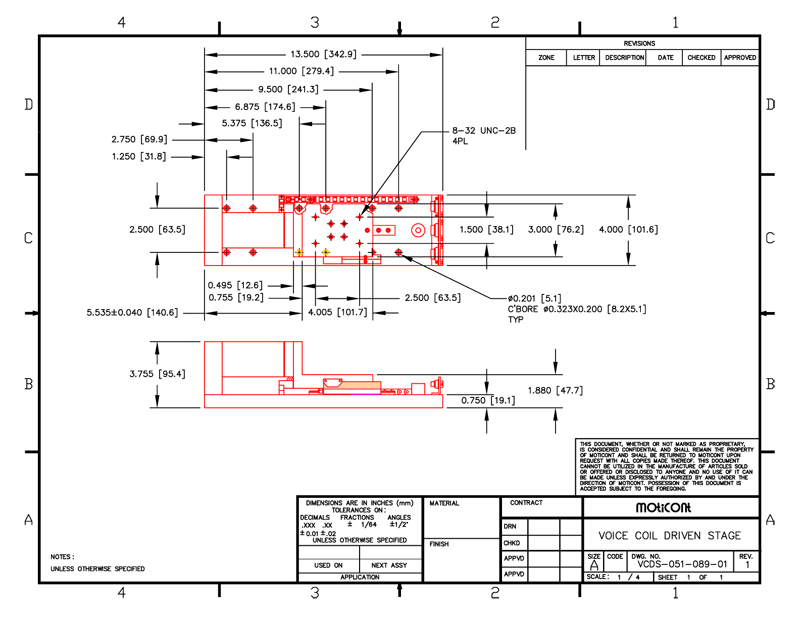

Drawing quick view  |
|||
| STAGE SPECIFICATIONS | ||||
|
Intermittent Force @ 10% Duty Cycle |
82.7 | N |
18.6 |
lb |
| Continuous Force | 26.2 | N |
5.9 |
lb |
|
Force Constant |
10.1 | N/A |
2.3 |
lb/A |
| BACK EMFConstant | 10.1 | V/M/S |
0.26 |
V/in/S |
|
Stroke |
57.2 | mm |
2.25 |
in |
| Moving Mass | 810 | gr |
28.6 |
oz |
|
TotalMass |
4.4 | kg |
9.8 |
lb |
|
Coil Resistance |
6.0 | Ohm | ||
Coil Inductance at 1000 Hz |
2.7 | mH | ||
Continuous Power |
40 | W |
Connection
9 pin DB-9 Male Connector
Pin Assignment and Description
|
PIN |
DESCRIPTION |
|
1 |
+5 VDC Power (Quadrature Optical Encoder) |
|
2 |
Return for +5 VDC Power (Home Switch) |
|
3 |
Channel-A of Quadrature Optical Encoder |
|
4 |
Channel-B of Quadrature Optical Encoder |
|
5 |
Return for +5 VDC Power (Quadrature Optical Encoder) |
|
6 |
Home Signal, Active High |
|
7 |
+5 VDC Power (Home Switch) |
|
8 |
Motor Minus |
|
9 |
Motor Plus |
Applying a positive voltage to pin-9 relative to pin-8 will move the motor outward.
