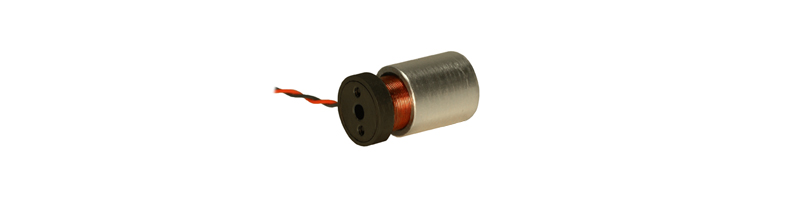

Linear Voice Coil Motor Actuator LVCM-025-029-02, Continuous Force: 37.6 Oz (10.5 N), Stroke: 0.31 in (7.9 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-029-02 | 0.313 | inch | 37.6 | oz | 118.9 | oz | 1.125 | inch |
Datasheet in PDF  |
7.9 | mm | 10.5 | N | 33.1 | N | 28.6 | mm |

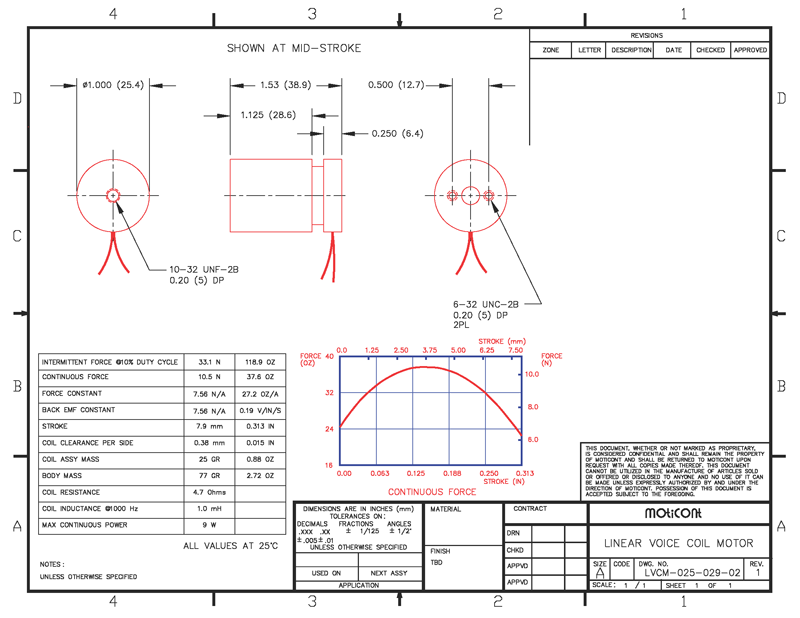

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-029-02M | 0.313 | inch | 37.6 | oz | 118.9 | oz | 1.125 | inch |
|
Datasheet in PDF |
7.9 | mm | 10.5 | N | 33.1 | N | 28.6 | mm |

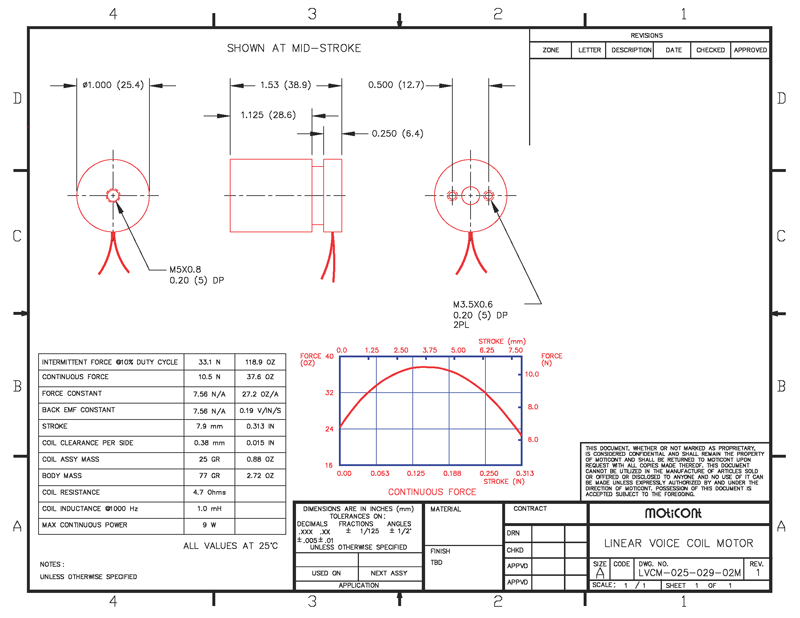

Drawing quick view
 |
Download 3D STEP |
|||||||
|
| ||||||||
