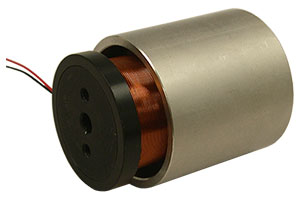

Linear Voice Coil Motor Actuator LVCM-051-051-06, Continuous Force: 3.0 lb (13.3 N), Stroke: 1.25 in (31.8 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm - Large Clearance Gap | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-051-06 | 1.25 | inch | 3.0 | lb | 9.5 | lb | 2.00 | inch |
Datasheet in PDF  |
31.8 | mm | 13.3 | N | 42.2 | N | 50.8 | mm |

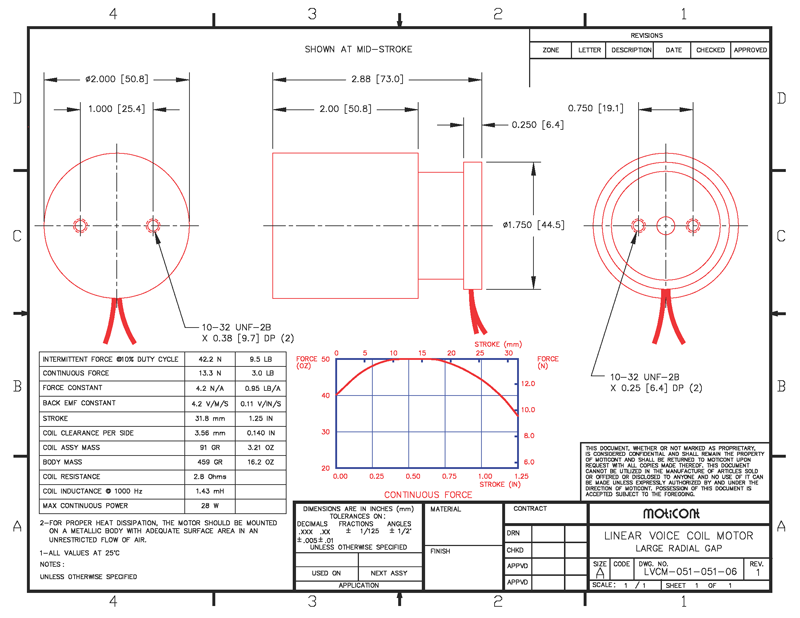

Drawing quick view
 |
Download 3D STEP | |||||||
