Linear Voice Coil Motor Actuator LVCM-051-064-03, Continuous Force: 19.3 lb (85.4 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-064-03 | 0.50 | inch | 19.3 | lb | 60.8 | lb | 2.50 | inch |
Datasheet in PDF  |
12.7 | mm | 85.4 | N | 270.0 | N | 63.5 | mm |

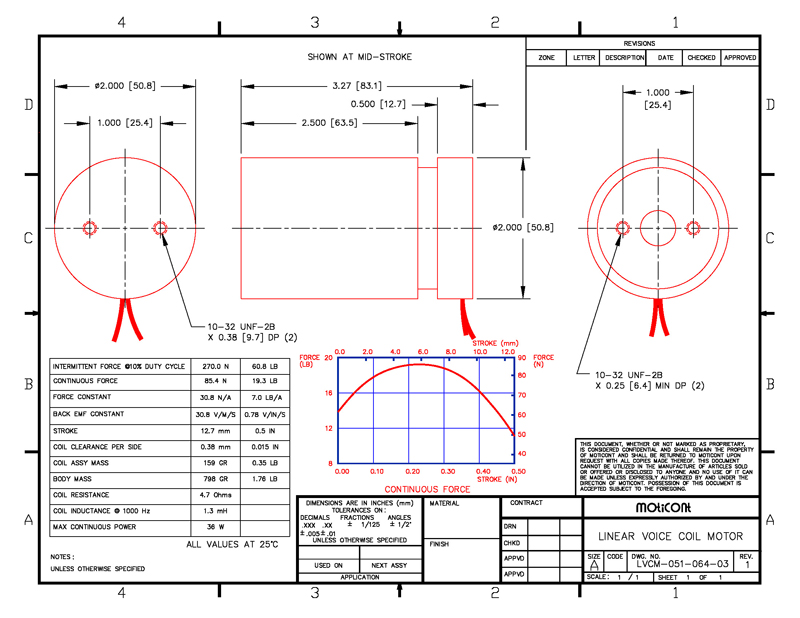

Drawing quick view
 |
Download 3D STEP | |||||||
