Linear Motor with Internal Shaft & Bearing, GVCM-016-010-01
Continuous Force: 5.0 Oz (1.4 N), Stroke: 0.125 in (3.2 mm)




Previous View Cart Next
Housing Outside Diameter, 0.625 inch, 15.9 mm

Linear Voice Coil Motor with Internal Bearing

Imperial Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-010-01 0.125 inch 5.0 oz 15.7 oz 0.375 inch
Datasheet in PDF PDF 3.2 mm 1.4 N 4.4 N 9.5 mm

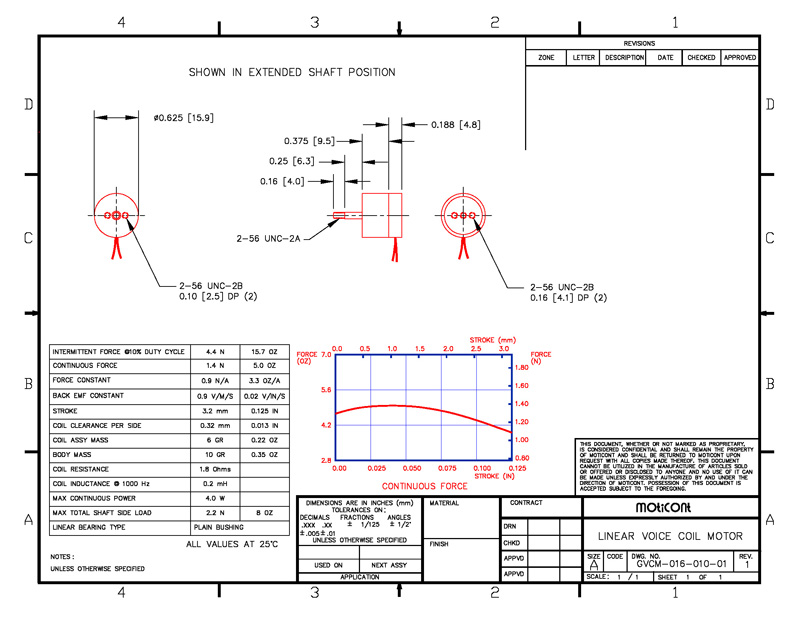

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online


Metric Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-010-01M 0.125 inch 5.0 oz 15.7 oz 0.375 inch
Datasheet in PDF PDF 3.2 mm 1.4 N 4.4 N 9.5 mm

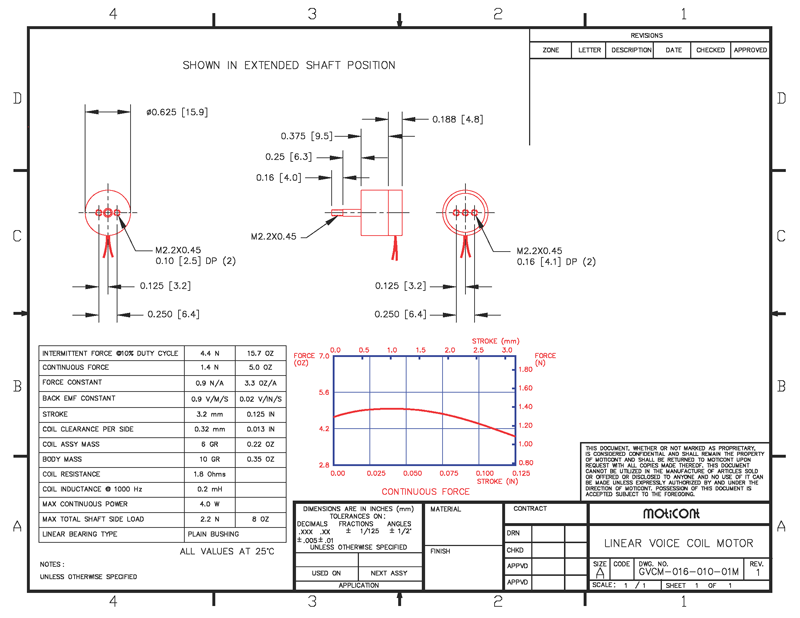

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online
