Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-016-013-01
Continuous Force: 5.7 Oz (1.6 N), Stroke: 0.25 in (6.4 mm)




Previous View Cart Next
Housing Outside Diameter, 0.625 inch, 15.9 mm

Linear Voice Coil Motor with Internal Bearing

Imperial Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-013-01 0.25 inch 5.7 oz 17.9 oz 0.500 inch
Datasheet in PDF PDF 6.4 mm 1.6 N 5.0 N 12.7 mm

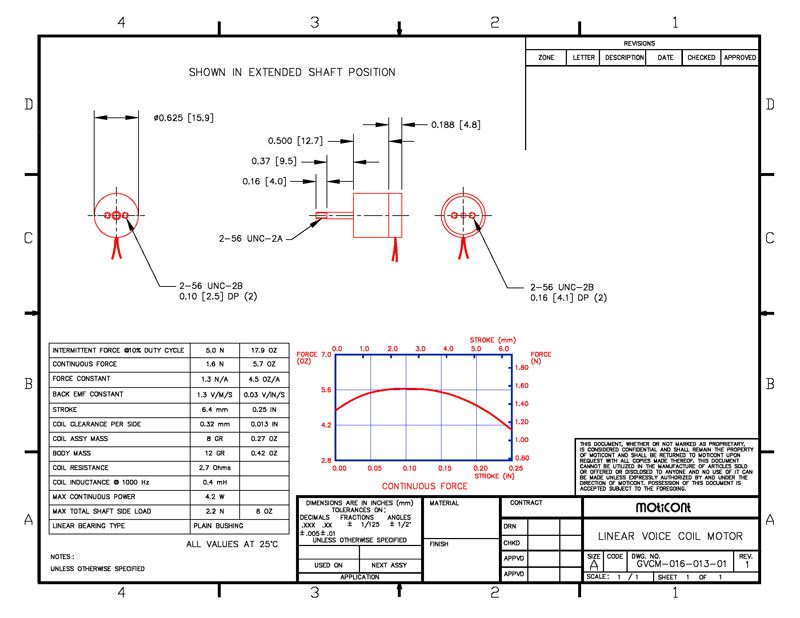

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online


Metric Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-013-01M 0.25 inch 5.7 oz 17.9 oz 0.500 inch
Datasheet in PDF PDF 6.4 mm 1.6 N 5.0 N 12.7 mm

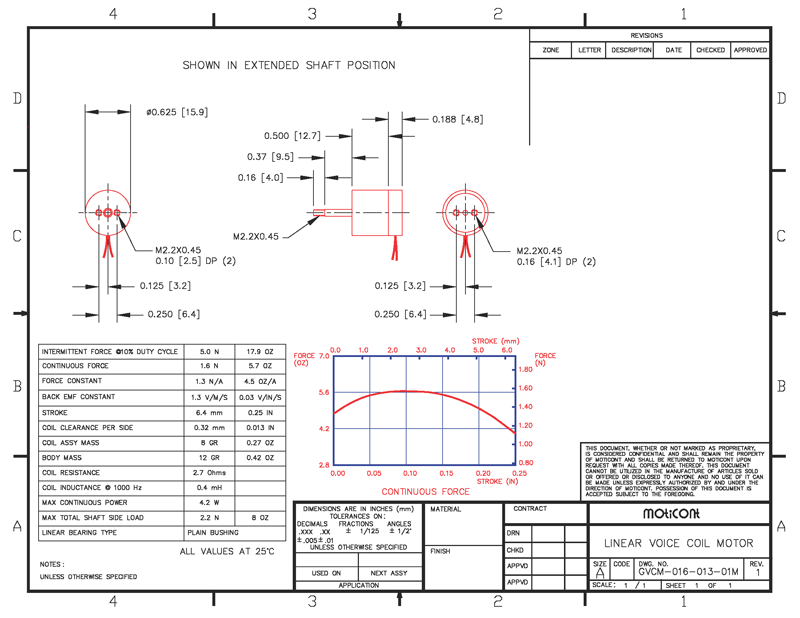

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online
