Linear Motor with Internal Shaft & Bearing, GVCM-016-019-01
Continuous Force: 5.3 Oz (1.5 N), Stroke: 0.25 in (6.4 mm)




Previous View Cart Next
Housing Outside Diameter, 0.625 inch, 15.9 mm

Linear Voice Coil Motor with Internal Bearing

Imperial Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-019-01 0.50 inch 5.3 oz 16.6 oz 0.750 inch
Datasheet in PDF PDF 12.7 mm 1.5 N 4.6 N 19.1 mm

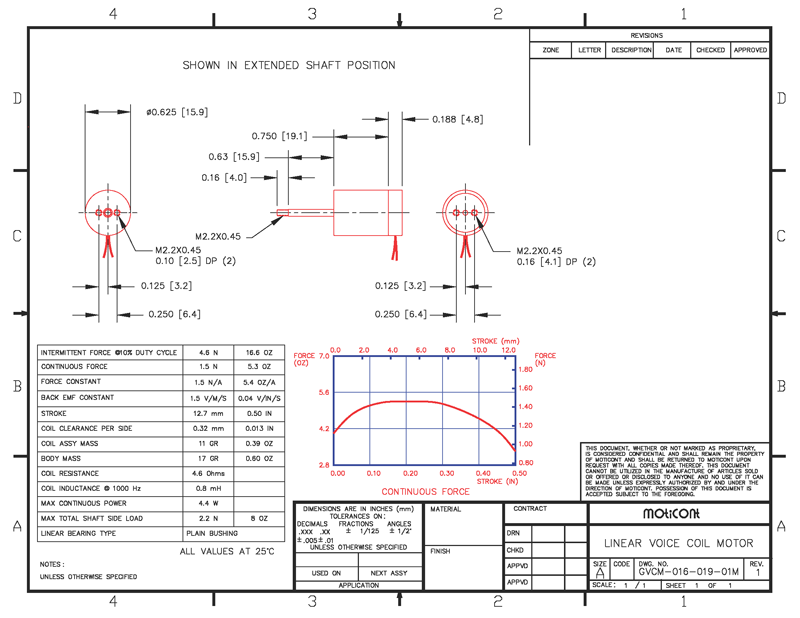

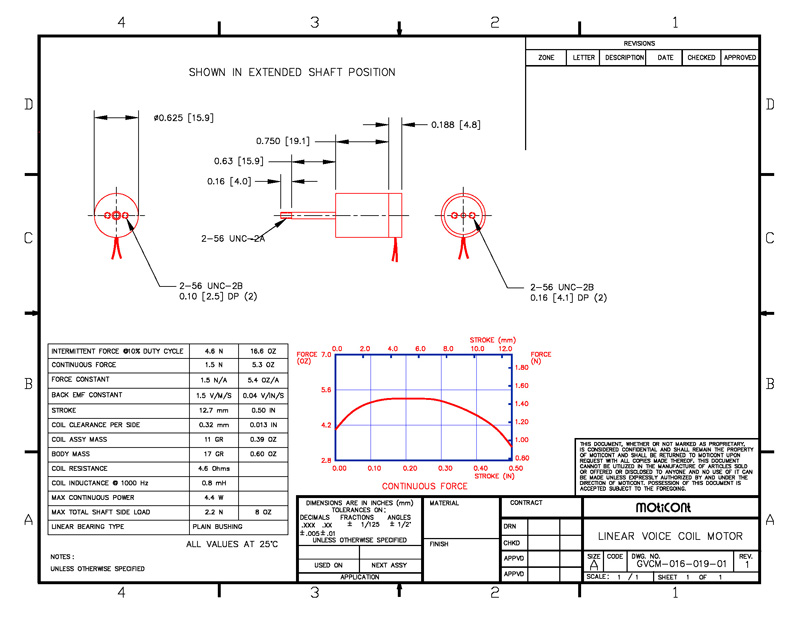

Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online


Metric Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-019-01M 0.50 inch 5.3 oz 16.6 oz 0.750 inch
Datasheet in PDF PDF 12.7 mm 1.5 N 4.6 N 19.1 mm
Drawing quick view Mechanical Drawing Download 3D STEP
Buy Online
