Linear Motor with Internal Shaft & Bearing, GVCM-019-016-02
Continuous Force: 7.4 Oz (2.1 N), Stroke: 0.250 in (6.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 0.750 inch, 19.1 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-019-016-02 0.250 inch 7.4 oz 23.7 oz 0.625 inch
Datasheet in PDF 6.4 mm 2.1 N 6.6 N 15.9 mm

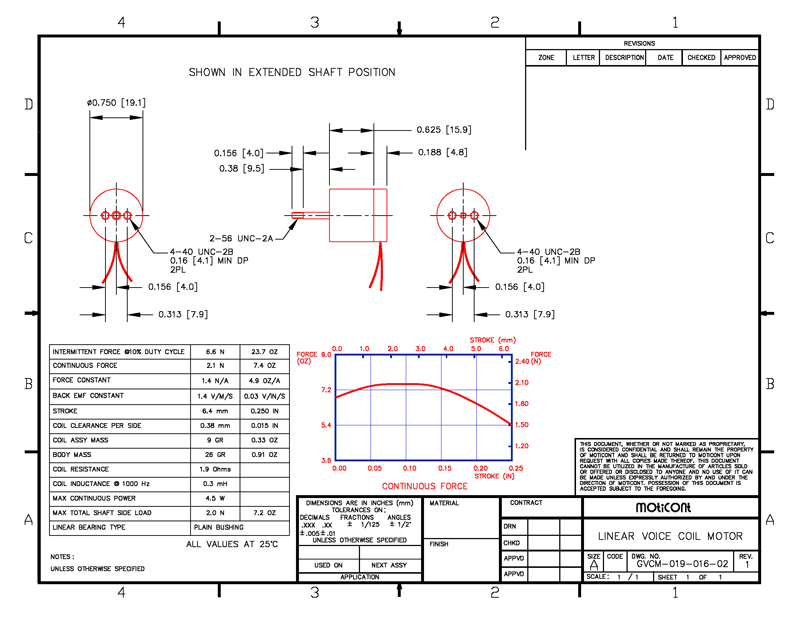

Drawing quick view Mechanical Drawing Download 3D STEP
