Linear Motor with Internal Shaft & Bearing, GVCM-019-022-02
Continuous Force: 8.4 Oz (2.3 N), Stroke: 0.500 in (8.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 0.750 inch, 19.1 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-019-022-02 0.500 inch 8.4 oz 26.6 oz 0.875 inch
Datasheet in PDF PDF 12.7 mm 2.3 N 7.4 N 22.2 mm

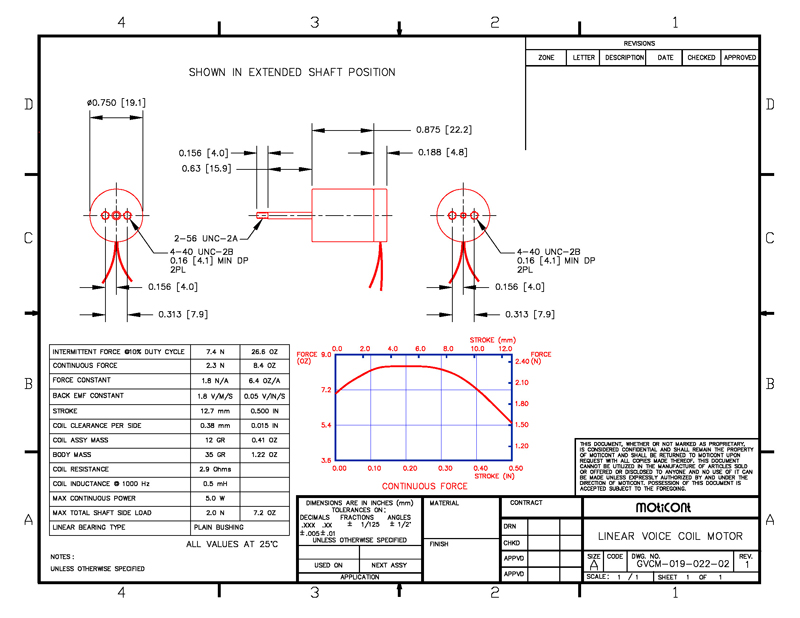

Drawing quick view Mechanical Drawing Download 3D STEP
