Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-019-032-02
Continuous Force: 7.4 Oz (2.1 N), Stroke: 0.875 in (22.2 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 0.750 inch, 19.1 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-019-032-02 0.875 inch 7.4 oz 23.3 oz 1.250 inch
Datasheet in PDF PDF 22.2 mm 2.1 N 6.5 N 31.8 mm

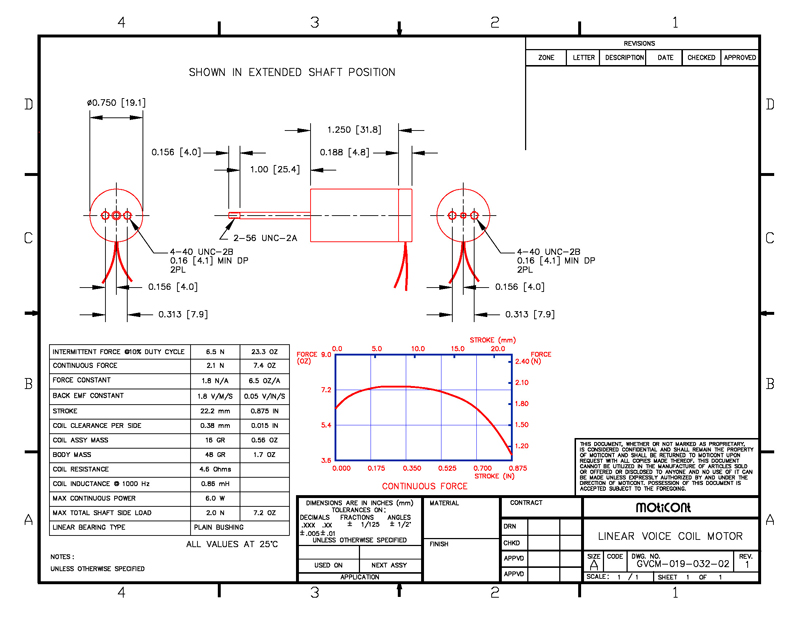

Drawing quick view Mechanical Drawing Download 3D STEP
