Linear Motor with Internal Shaft & Bearing, GVCM-022-013-01
Continuous Force: 14.5 oz (4.0 N), Stroke: 0.25 in (6.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter: 0.875 inch, 22.2 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-022-013-01 0.25 inch 14.5 oz 45.7 oz 0.500 inch
Datasheet in PDF PDF 6.4 mm 4.0 N 12.7 N 12.7 mm

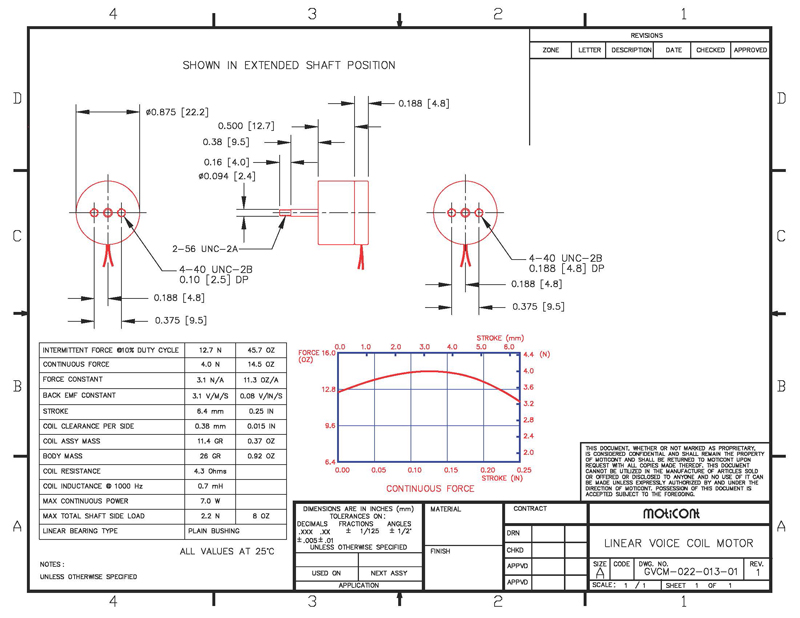

Drawing quick view Mechanical Drawing Download 3D STEP
