Linear Motor with Internal Shaft & Bearing, GVCM-025-022-01
Continuous Force: 16.9 Oz (4.7 N), Stroke: 0.375 in (9.5 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-025-022-01 0.375 inch 16.9 oz 53.5 oz 0.875 inch
Datasheet in PDF 9.5 mm 4.7 N 14.9 N 22.2 mm

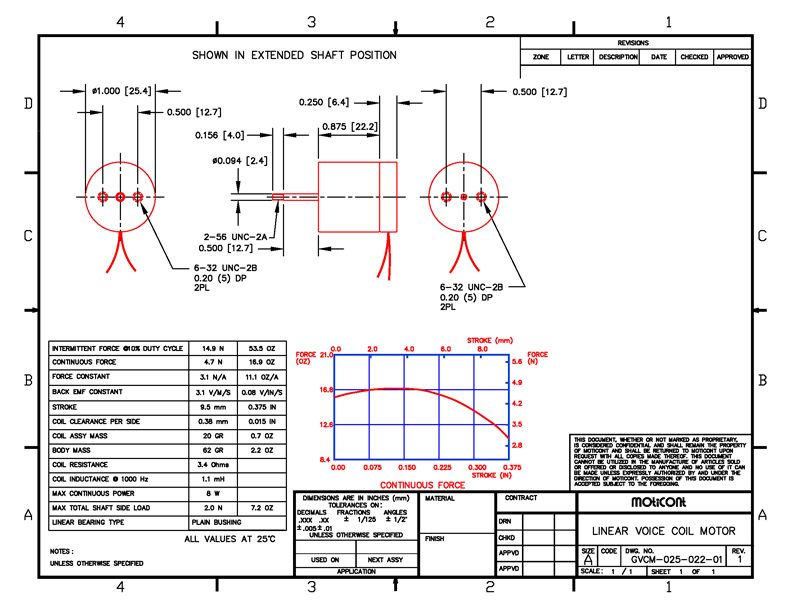

Drawing quick view Mechanical Drawing Download 3D STEP
