Linear Motor with Internal Shaft & Bearing, GVCM-025-029-01
Continuous Force: 18.2 Oz (5.1 N), Stroke: 0.625 in (15.9 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-025-029-01 0.625 inch 18.2 oz 57.5 oz 1.125 inch
Datasheet in PDF PDF 15.9 mm 5.1 N 16.0 N 28.6 mm

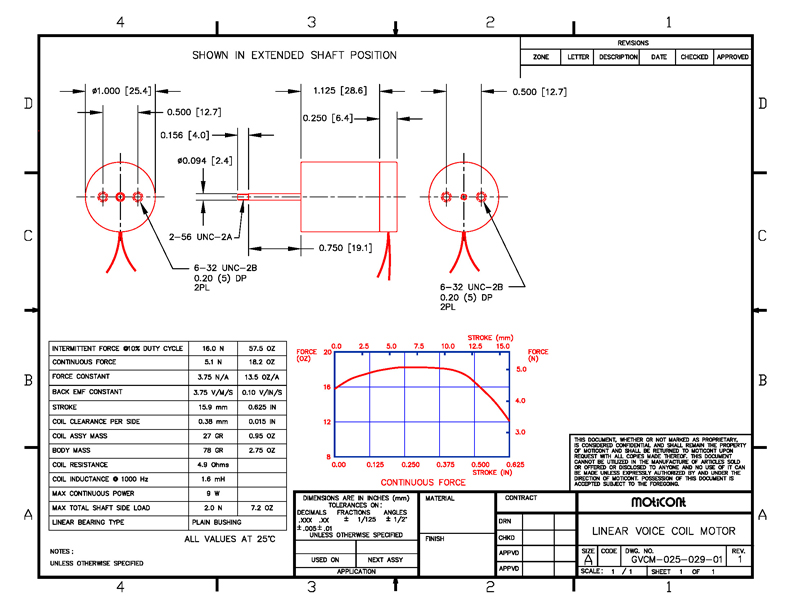

Drawing quick view Mechanical Drawing Download 3D STEP
