Linear Motor with Internal Shaft & Bearing, GVCM-025-038-01
Continuous Force: 2.5 lb (11.0 N), Stroke: 0.375 in (9.5 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-025-038-01 0.375 inch 2.5 lb 7.8 lb 1.500 inch
Datasheet in PDF PDF 9.5 mm 11.0 N 34.7 N 38.1 mm

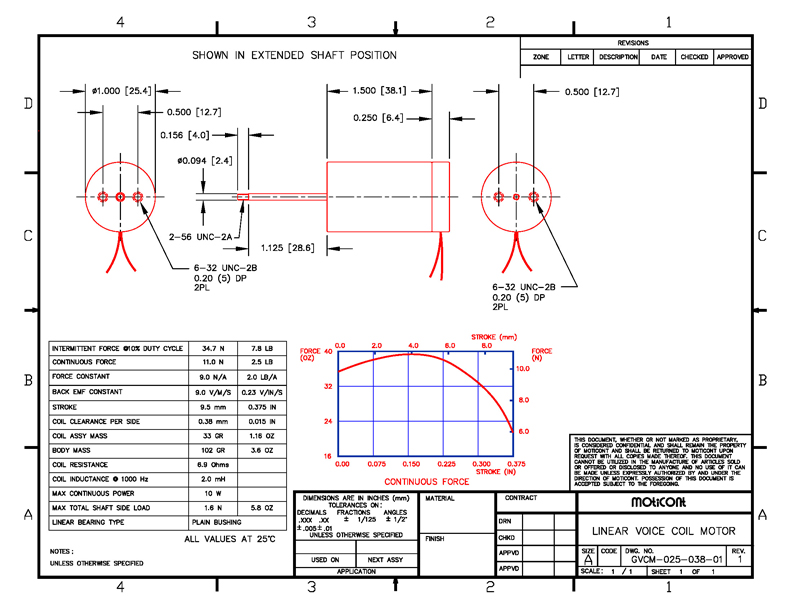

Drawing quick view Mechanical Drawing Download 3D STEP
