Linear Motor with Internal Shaft & Bearing, GVCM-025-038-02
Continuous Force: 1.0 lb (4.6 N), Stroke: 1.00 in (25.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-025-038-02 1.000 inch 1.0 lb 3.2 lb 1.500 inch
Datasheet in PDF PDF 25.4 mm 4.6 N 14.4 N 38.1 mm

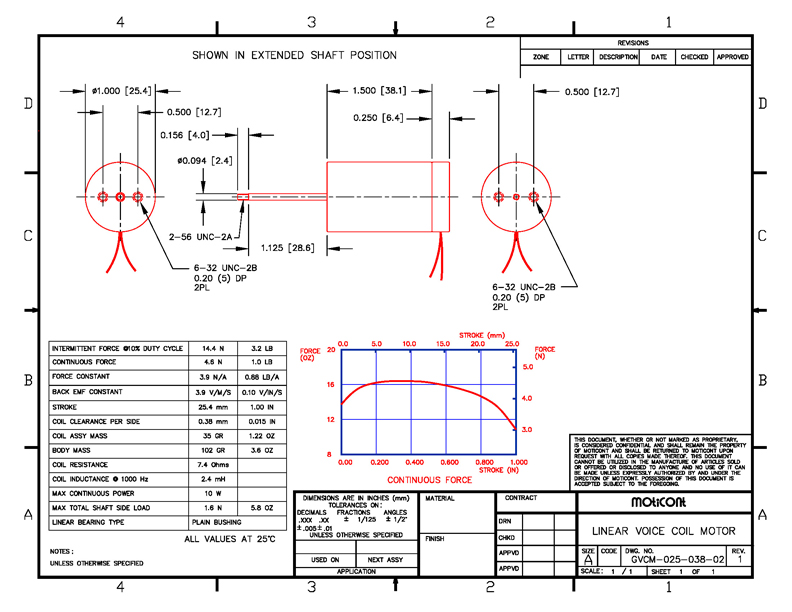

Drawing quick view Mechanical Drawing Download 3D STEP
