Linear Motor with Internal Shaft & Bearing, GVCM-032-025-02
Continuous
Force: 2.1 Lb (9.3 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
| Housing Outside Diameter, 1.250 inch, 38.1 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-032-025-02M | 0.50 | inch | 2.1 | Lb | 6.6 | Lb | 1.000 | inch |
Datasheet in PDF  |
12.7 | mm | 9.3 | N | 29.3 | N | 25.4 | mm |

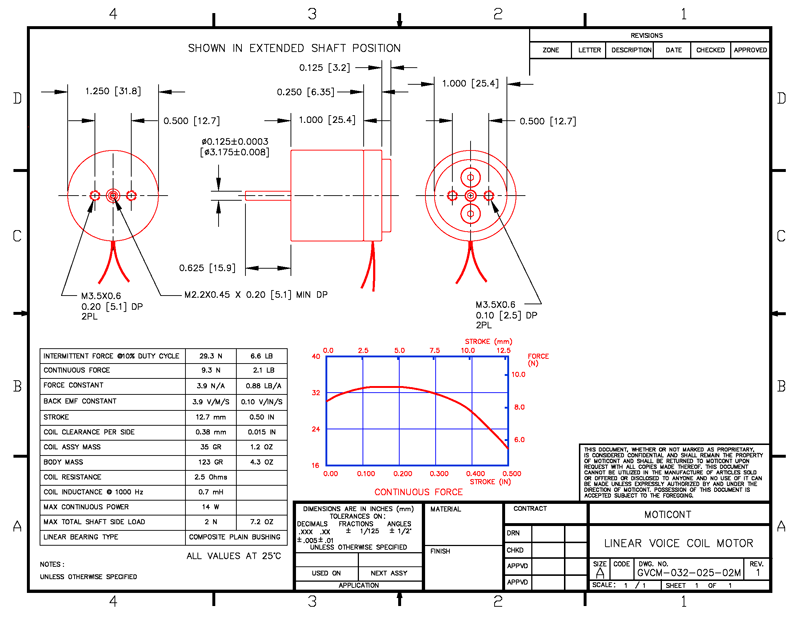

Drawing quick view
 |
||||||||
| ||||||||
