Linear Motor with Internal Shaft & Bearing, GVCM-032-038-02
Continuous
Force: 1.9 Lb (8.3 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
| Housing Outside Diameter, 1.250 inch, 38.1 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-032-038-02M | 1.00 | inch | 1.9 | Lb | 5.9 | Lb | 1.500 | inch |
Datasheet in PDF  |
25.4 | mm | 8.3 | N | 26.1 | N | 38.1 | mm |

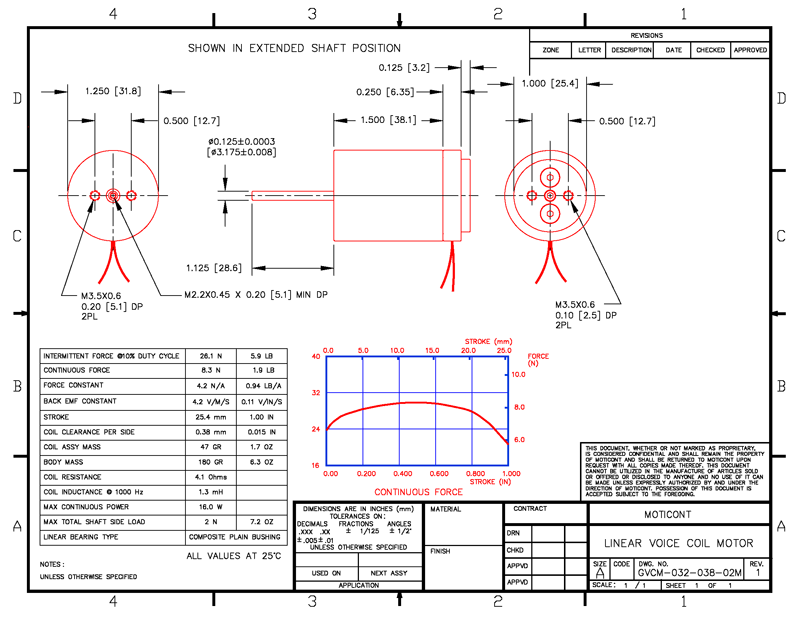

Drawing quick view
 |
||||||||
| ||||||||
