Linear Motor with Internal Shaft & Bearing, GVCM-032-076-02
Continuous
Force: 1.8 Lb (8.0 N), Stroke: 2.50 in (63.5 mm)
 |
 |
 |
| Housing Outside Diameter, 1.250 inch, 38.1 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-032-076-02M | 2.50 | inch | 1.8 | Lb | 5.3 | Lb | 3.000 | inch |
Datasheet in PDF  |
63.5 | mm | 8.0 | N | 25.3 | N | 76.2 | mm |

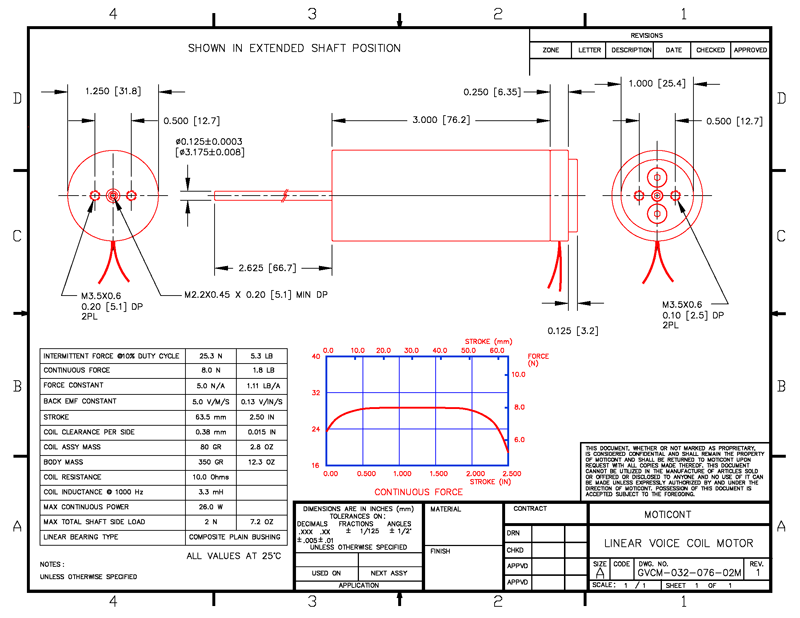

Drawing quick view
 |
||||||||
| ||||||||
