Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-051-025-01
Continuous Force: 5.3 lb (23.5 N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-025-01 0.50 inch 5.3 lb 16.7 lb 1.00 inch
Datasheet in PDF PDF 12.7 mm 23.5 N 74.4 N 25.4 mm

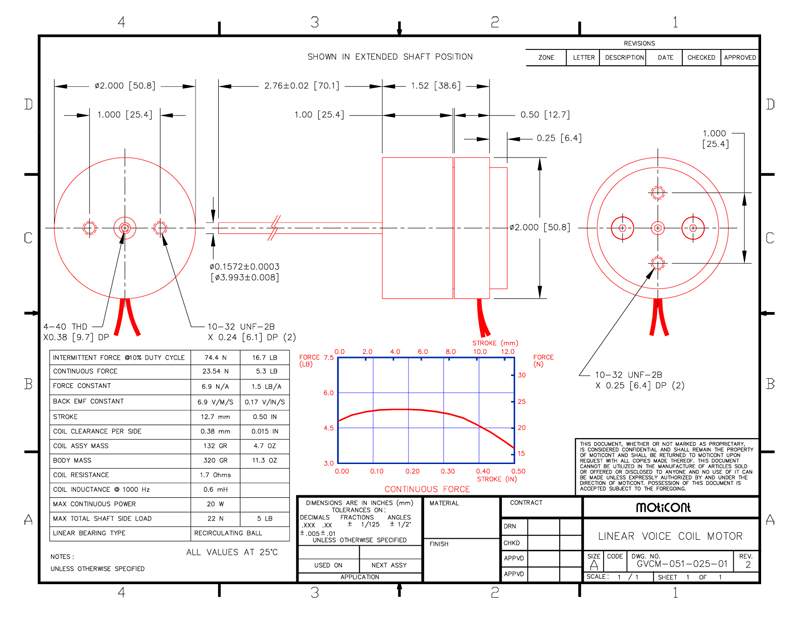

Drawing quick view Mechanical Drawing Download 3D STEP
