Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-051-032-01
Continuous Force: 5.7 lb (25.5 N), Stroke: 0.75 in (19.1 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-032-01 0.75 inch 5.7 lb 18.1 lb 1.25 inch
Datasheet in PDF PDF 19.1 mm 25.5 N 80.4 N 31.7 mm

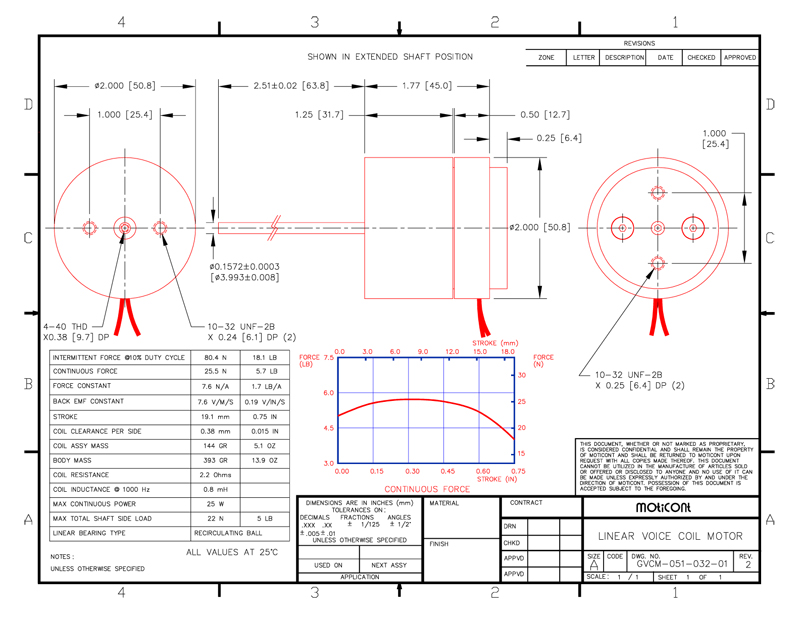

Drawing quick view Mechanical Drawing Download 3D STEP
