Linear Motor with Internal Shaft & Bearing, GVCM-051-051-01
Continuous Force: 6.3 lb (28.0 N), Stroke: 0.75 in (19.1 mm)




Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-051-01 0.75 inch 6.3 lb 19.9 lb 2.00 inch
Datasheet in PDF PDF 19.1 mm 28.0 N 88.6 N 50.8 mm

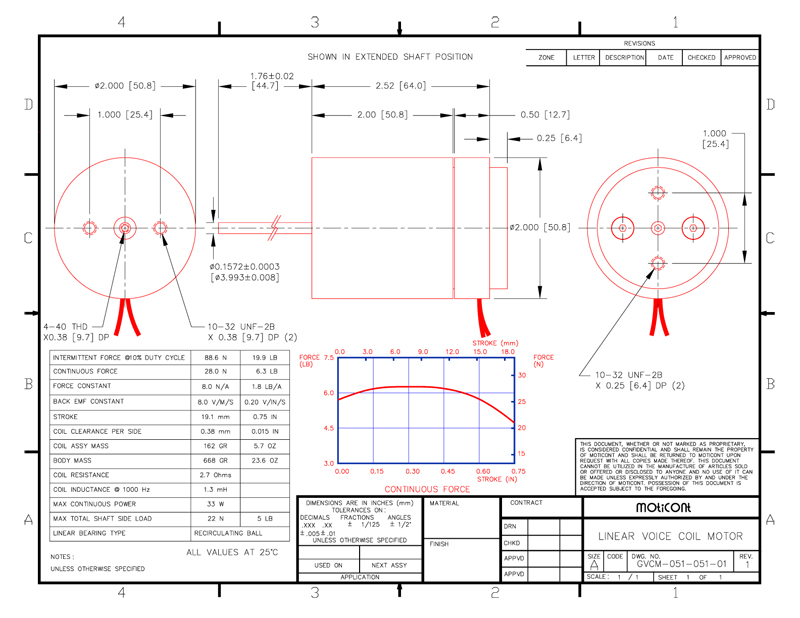

Drawing quick view Mechanical Drawing Download 3D STEP
