Linear Motor with Internal Shaft & Bearing, GVCM-051-051-05
Continuous Force: 6.6 lb (29.3 N), Stroke: 1.00 in (25.4 mm)




Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-051-05 1.00 inch 6.6 lb 20.8 lb 2.00 inch
Datasheet in PDF PDF 25.4 mm 29.3 N 92.6 N 50.8 mm

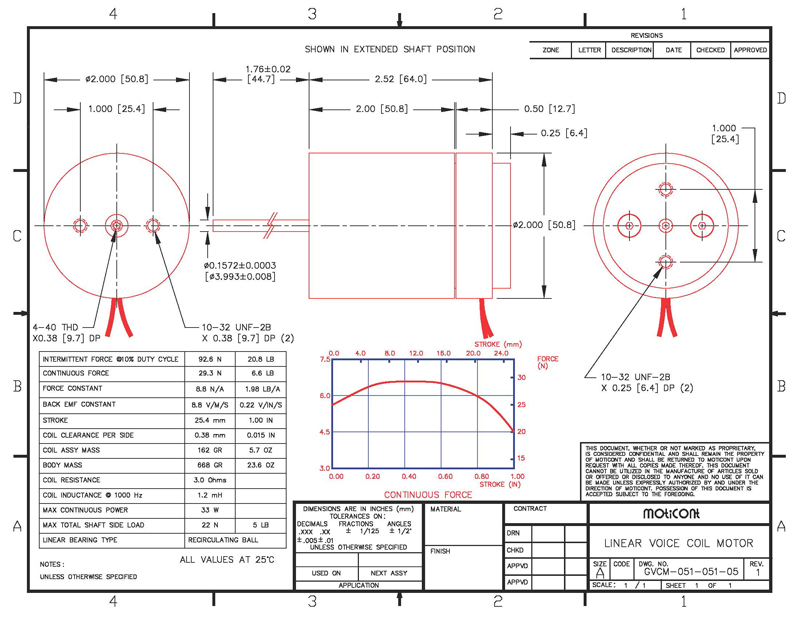

Drawing quick view Mechanical Drawing Download 3D STEP
