Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-051-064-01
Continuous Force: 6.6 lb (29.4 N), Stroke: 1.25 in (31.8 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-064-01 1.25 inch 6.6 lb 20.9 lb 2.50 inch
Datasheet in PDF PDF 31.8 mm 29.4 N 92.9 N 63.5 mm

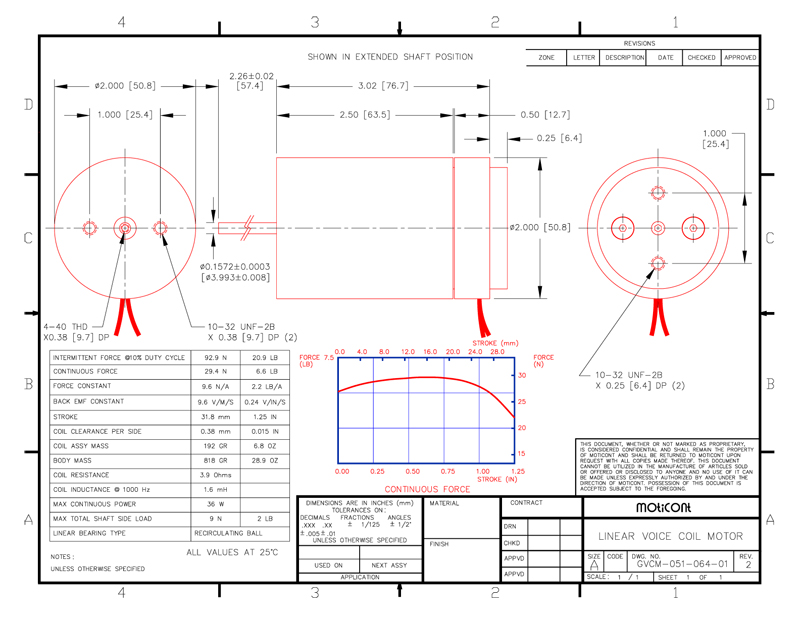

Drawing quick view Mechanical Drawing Download 3D STEP
