Linear Motor with Internal Shaft & Bearing, GVCM-051-089-01
Continuous Force: 5.9 lb (26.2 N), Stroke: 2.25 in (57.2 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-089-01S06 2.25 inch 5.9 lb 18.6 lb 3.50 inch
Datasheet in PDF 57.2 mm 26.2 N 82.7 N 88.9 mm

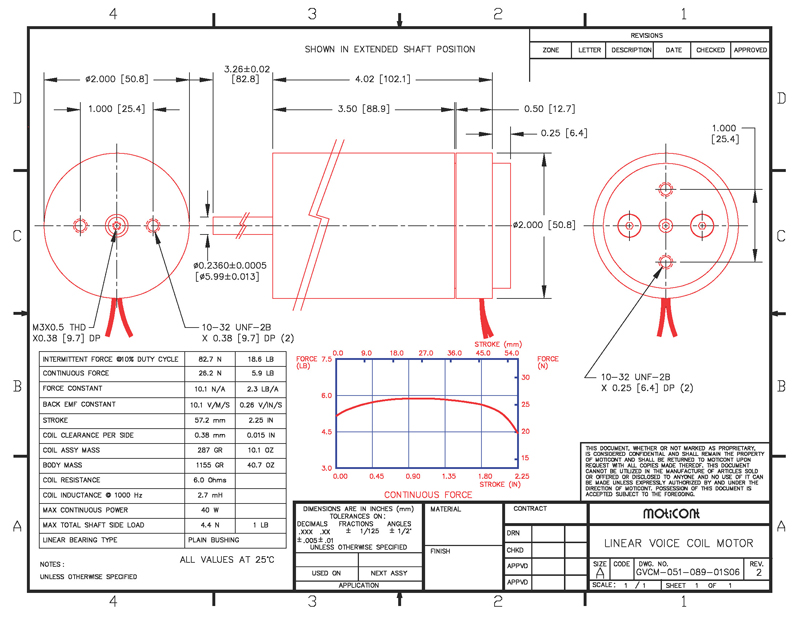

Drawing quick view Mechanical Drawing Download 3D STEP
