Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-051-089-02
Continuous Force: 14.9 lb (66.4 N), Stroke: 1.00 in (25.4mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

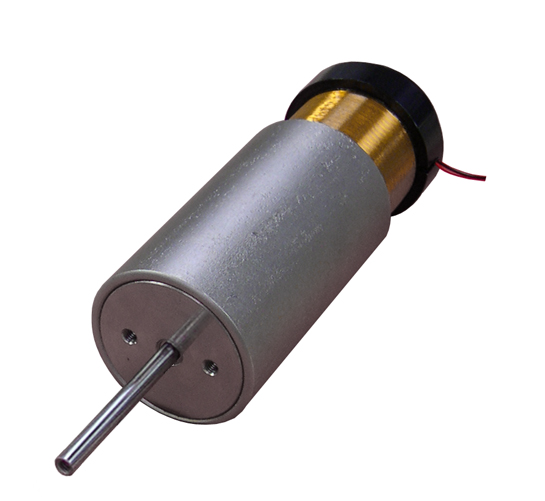

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-089-02S06 1.00 inch 14.9 lb 47.2 lb 3.50 inch
Datasheet in PDF 25.4 mm 66.4 N 210 N 88.9 mm

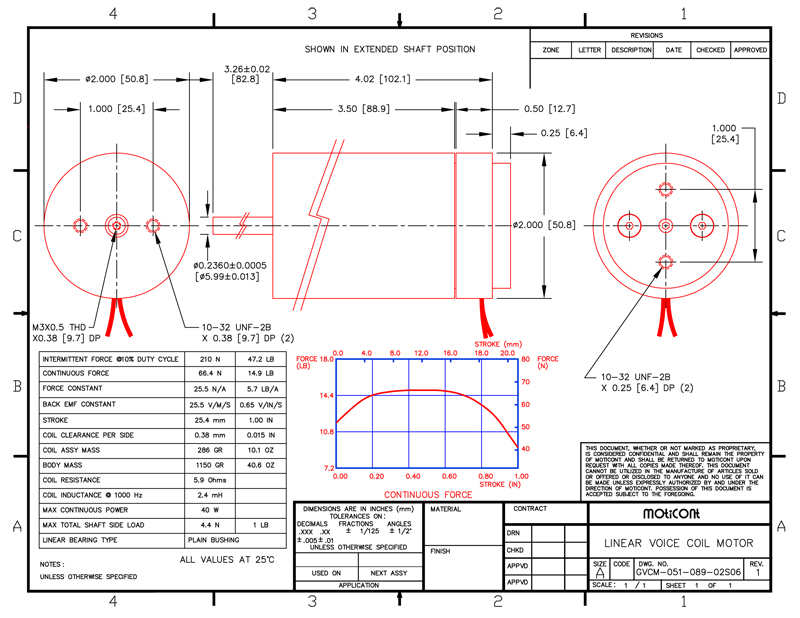

Drawing quick view Mechanical Drawing Download 3D STEP
