Linear Motor with Internal Shaft & Bearing, GVCM-051-089-05
Continuous Force: 5.5 lb (24.6 N), Stroke: 2.75 in (69.9mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-089-05S06 2.75 inch 5.5 lb 17.5 lb 3.50 inch
Datasheet in PDF 69.9 mm 24.6 N 77.7 N 88.9 mm

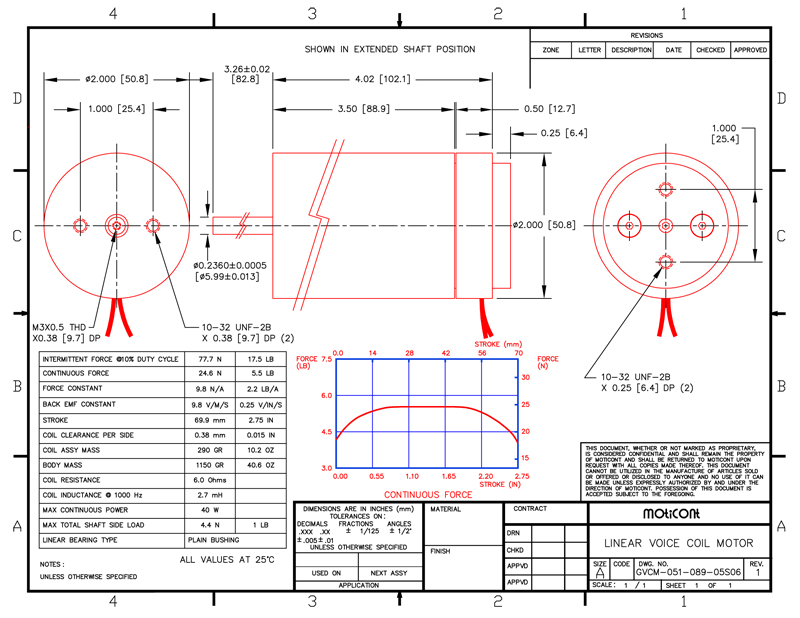

Drawing quick view Mechanical Drawing Download 3D STEP
