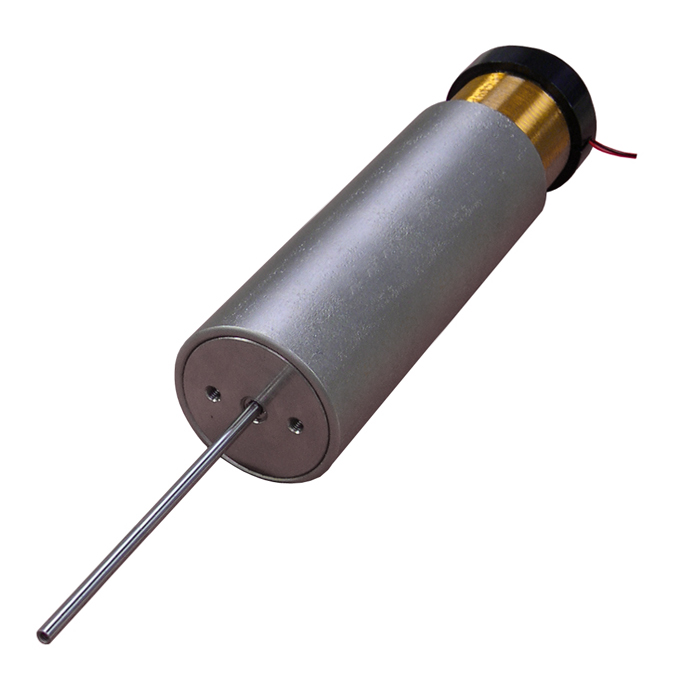

Linear Motor with Internal Shaft & Bearing, GVCM-051-127-01
Continuous Force: 5.0 lb (22.2 N), Stroke: 3.75 in (95.3 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-127-01S06 3.75 inch 5.0 lb 15.8 lb 5.00 inch
Datasheet in PDF 95.3 mm 22.2 N 70.3 N 127.0 mm

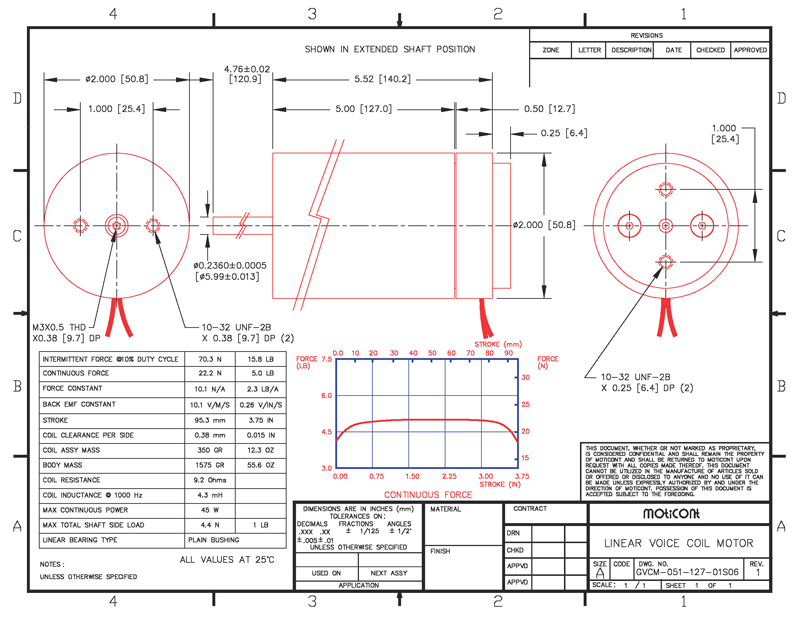

Drawing quick view Mechanical Drawing Download 3D STEP
