Linear Motor with Internal Shaft & Bearing, GVCM-070-038-01
Continuous Force: 14.5 lb (64.5 N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.750 inch, 69.9 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-070-038-01 0.50 inch 14.5 lb 45.9 lb 1.50 inch
Datasheet in PDF PDF 12.7 mm 64.5 N 204.2 N 38.1 mm

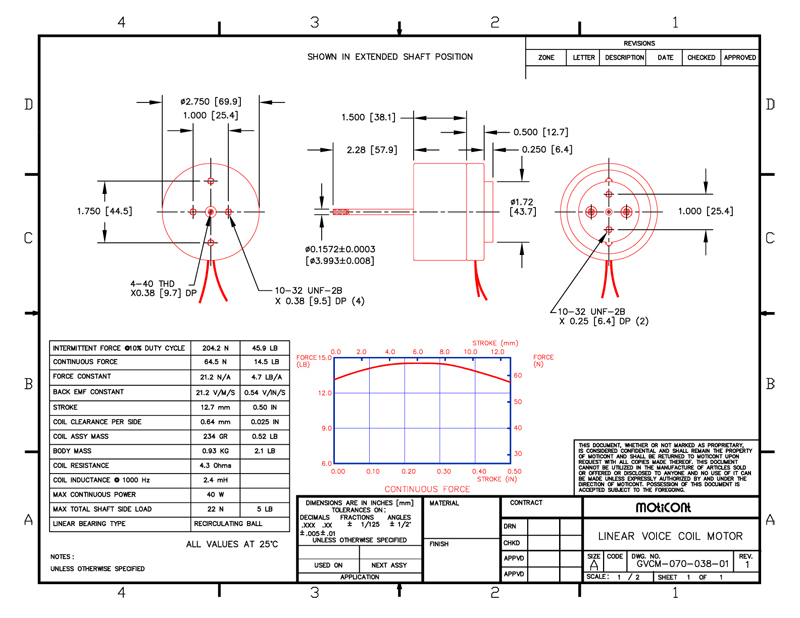

Drawing quick view Mechanical Drawing Download 3D STEP
