Linear Motor with Internal Shaft & Bearing, GVCM-070-051-01
Continuous Force: 14.6 lb (70.0 N), Stroke: 1.00 in (25.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.750 inch, 69.9 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-070-051-01 1.00 inch 14.6 lb 46.0 lb 2.00 inch
Datasheet in PDF PDF 25.4 mm 70.0 N 204.7 N 50.8 mm

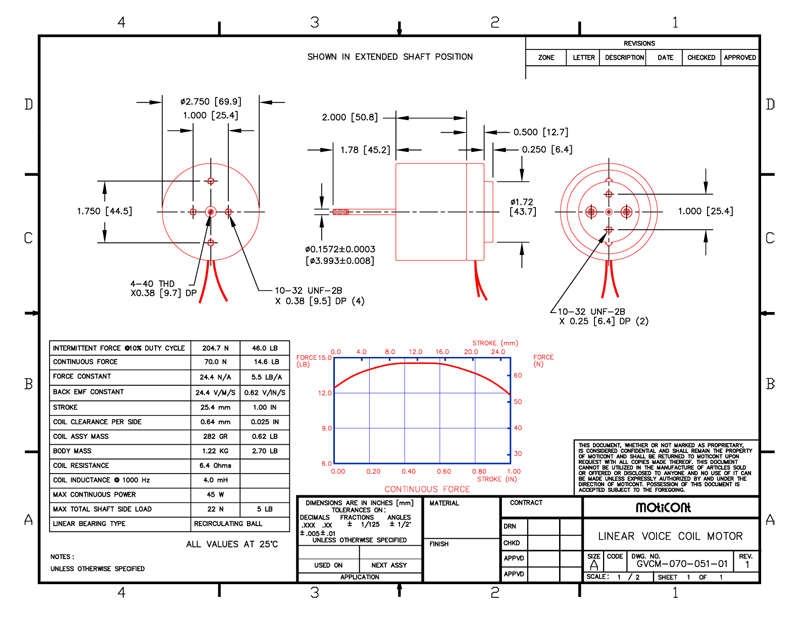

Drawing quick view Mechanical Drawing Download 3D STEP
