Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-070-064-01
Continuous Force: 14.4 lb (64.1 N), Stroke: 1.50 in (38.1 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.750 inch, 69.9 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-070-064-01 1.50 inch 14.4 lb 45.5 lb 2.50 inch
Datasheet in PDF PDF 38.1 mm 64.1 N 202.5 N 63.5 mm

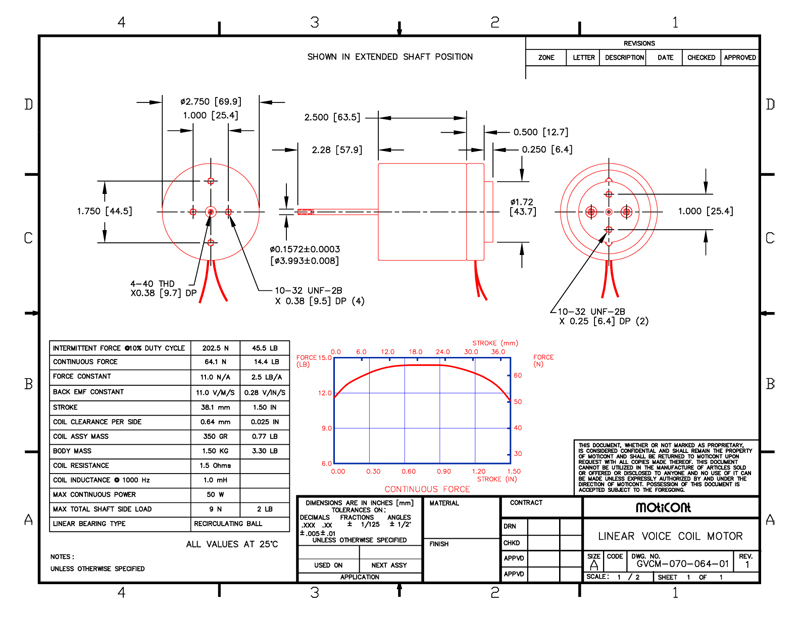

Drawing quick view Mechanical Drawing Download 3D STEP
