Linear Motor with Internal Shaft & Bearing, GVCM-095-038-01
Continuous Force: 23.1 lb (102.8 N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-038-01 0.50 inch 23.1 lb 73.1 lb 1.50 inch
Datasheet in PDF PDF 12.7 mm 102.8 N 325.3 N 38.1 mm

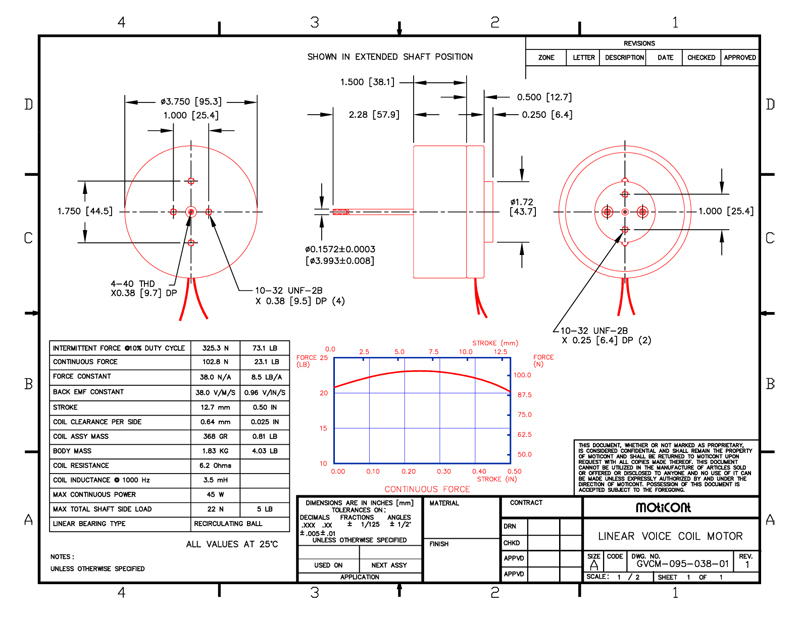

Drawing quick view Mechanical Drawing Download 3D STEP
