Home > Linear Voice Coil Motors with Shaft and Internal Bearing

Linear Motor with Internal Shaft & Bearing, GVCM-095-051-01
Continuous Force: 23.5 lb (104.6 N), Stroke: 1.00 in (25.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-051-01 1.00 inch 23.5 lb 74.0 lb 2.00 inch
Datasheet in PDF PDF 25.4 mm 104.6 N 329.3 N 50.8 mm

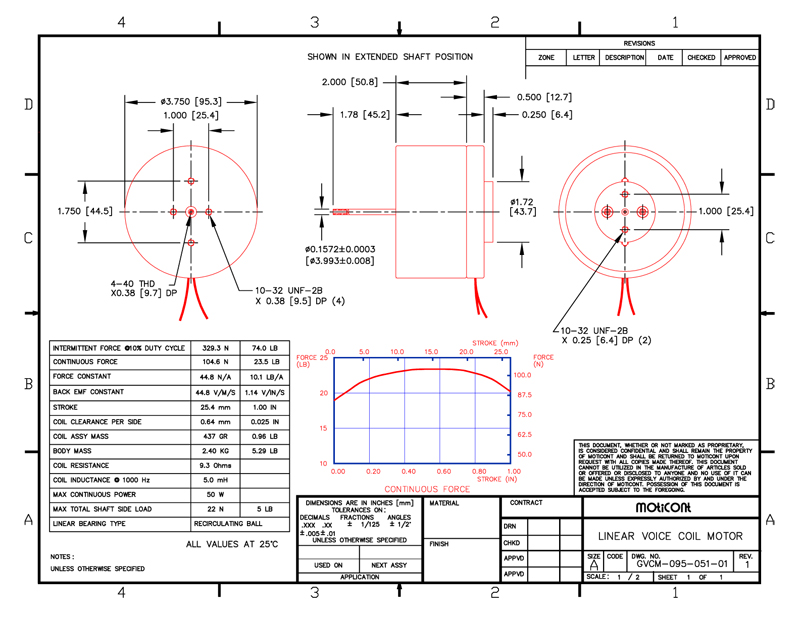

Drawing quick view Mechanical Drawing Download 3D STEP
