Linear Motor with Internal Shaft & Bearing, GVCM-095-064-01
Continuous Force: 24.4 lb (108.6 N), Stroke: 1.50 in (38.1 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-064-01 1.50 inch 24.4 lb 77.1 lb 2.50 inch
Datasheet in PDF PDF 38.1 mm 108.6 N 343.1 N 63.5 mm

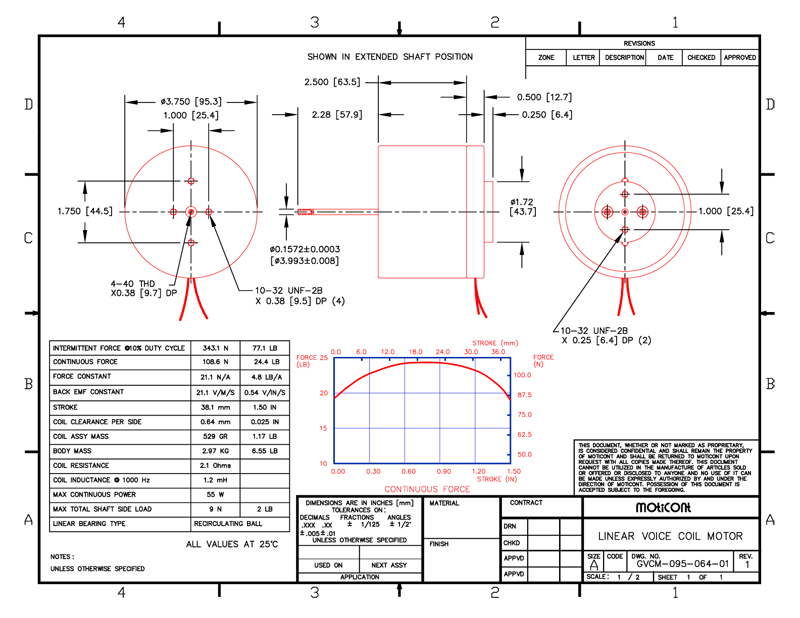

Drawing quick view Mechanical Drawing Download 3D STEP
