Linear Motor with Internal Shaft & Bearing, GVCM-095-089-01
Continuous Force: 25.0 lb (111.2 N), Stroke: 2.50 in (63.5 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-089-01S06 2.50 inch 25.0 lb 79.0 lb 3.50 inch
Datasheet in PDF PDF 63.5 mm 111.2 N 351.3 N 88.9 mm

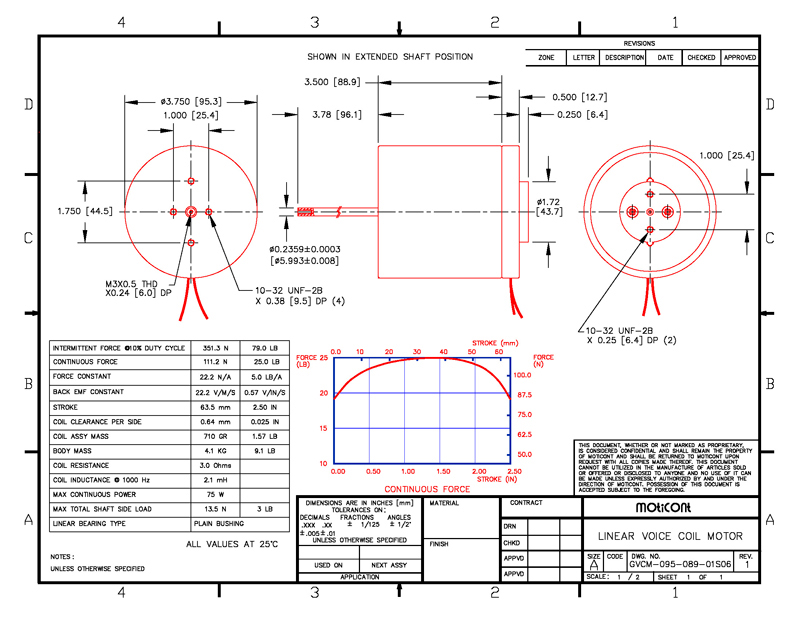

Drawing quick view Mechanical Drawing Download 3D STEP
