Linear Motor with Internal Shaft & Bearing, GVCM-095-089-02
Continuous Force: 58.0 lb (257.7 N), Stroke: 1.00 in (25.4 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor with Internal Bearing

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-095-089-02S06 1.00 inch 58.0 lb 183.1 lb 3.50 inch
Datasheet in PDF PDF 25.4 mm 257.7 N 814.5 N 88.9 mm

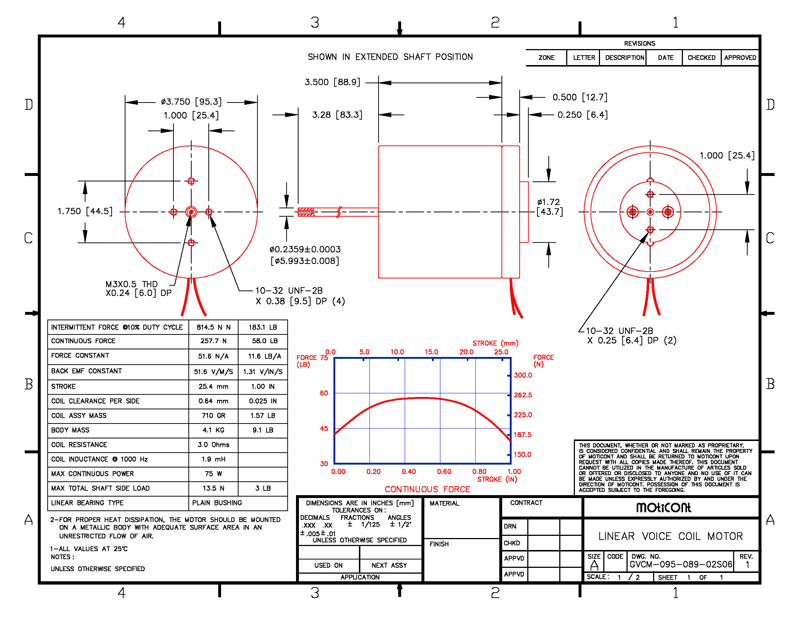

Drawing quick view Mechanical Drawing Download 3D STEP
