Direct Drive Linear Motors with Built-in Encoder - SDLM-025-070-01-01
Continuous Force: 22.2 Oz (5.9
N), Stroke: 0.500 in (12.7 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
|
||||||||
|
The SDLM-025-070-01-01 direct drive linear actuator motor, also known as electric cylinder features a built-in encoder, has zero backlash, zero cogging and provides users with high acceleration, high speed, high resolution and long life.
This linear actuator features 1.25 µm (0.000049") of resolution. This compact direct drive linear motor is just 1.00" (25.4 mm) in diameter and 2.75" (69.9 mm) in length. A built-in linear optical quadrature encoder is directly connected to the shaft for the greatest possible accuracy. This linear actuator has a stroke length of 0.500" (12.7 mm), a continuous force of 22.2 oz (5.9 N) and peak force of 67.2 oz (18.7 N). This non-commutated direct drive servo motor features quiet long life plain linear bearings, an integrated internal (1.25 micron resolution) quadrature optical encoder with differential outputs and a non-rotating shaft. Direct coupling of the load to the low inertia non-rotating shaft eliminates backlash and allows for high acceleration/deceleration. Both shaft ends are threaded for easy integration into new and existing applications. Applications include: pick and place, semiconductor handling, inspection, medical procedure tables, antenna positioning, dampers, door valve actuators, agricultural equipment and adjustable office furniture. |
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| SDLM-025-070-01-01 | 0.500 | inch | 21.2 | oz | 67.0 | oz | 2.750 | inch |
Datasheet in PDF
 |
12.7 | mm | 5.9 | N | 18.6 | N | 69.9 | mm |

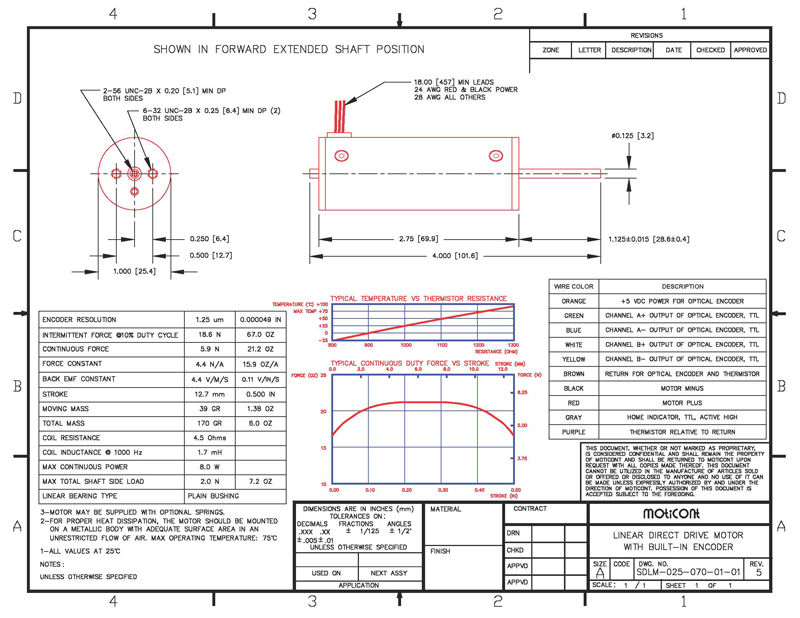

Drawing quick view
 |
Download 3D STEP
|
Resolution: 1.25 microns | ||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| SDLM-025-070-01-01M | 0.500 | inch | 21.2 | oz | 67.0 | oz | 2.750 | inch |
|
Datasheet in PDF
|
12.7 | mm | 5.9 | N | 18.6 | N | 69.9 | mm |

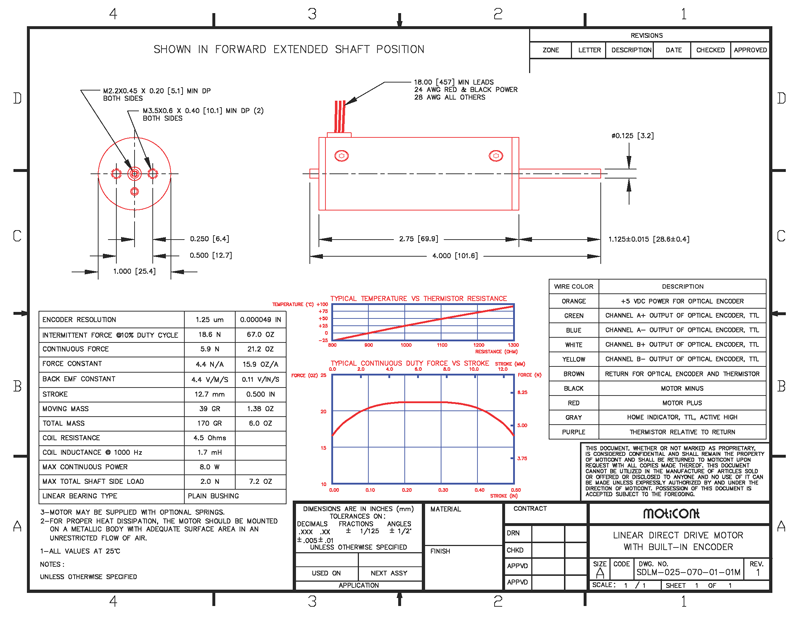

Drawing quick view
 |
Download 3D STEP
|
Resolution: 1.25 microns | ||||||
|
| ||||||||
