Direct Drive Linear Motors with Built-in Encoder - SDLM-051-070-01-01
Continuous Force: 6.8 Lb (30.3 N), Stroke: 0.500 in (12.7 mm)




Previous View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Direct Drive Linear Motor SDLM-051-070-01-01

Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length
SDLM-051-070-01-01 0.500 inch 6.8 lb 21.5 lb 2.750 inch
Datasheet in PDF pfd document 12.7 mm 30.3 N 95.7 N 69.9 mm

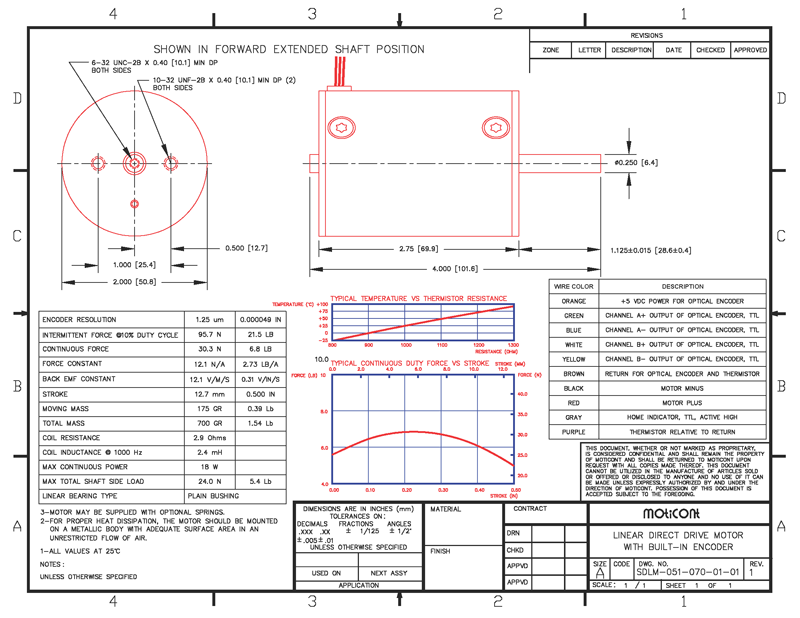

Drawing quick view Mechanical Drawing Resolution: 1.25 microns
