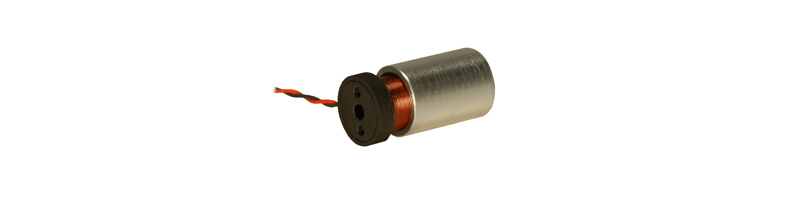

Linear Voice Coil Motor Actuator LVCM-025-038-02, Continuous Force: 16.4 Oz (4.6 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-038-02 | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
Datasheet in PDF  |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |

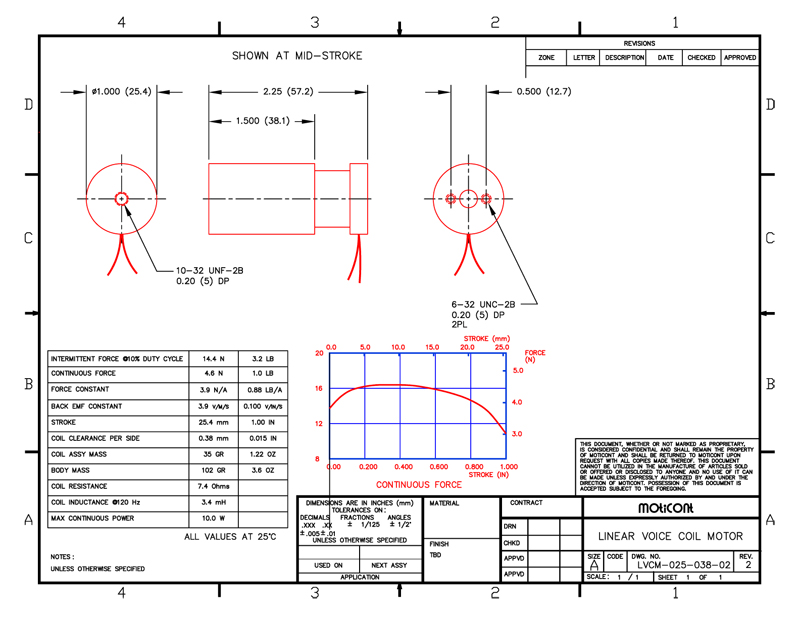

Drawing quick view
 |
Download 3D STEP | |||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-038-02M | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
|
Datasheet in PDF |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |

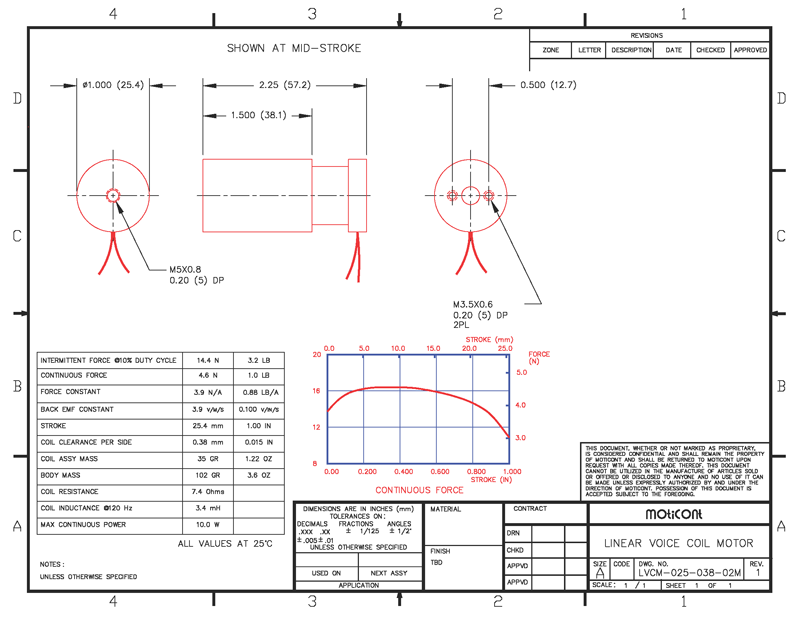

Drawing quick view
 |
Download 3D STEP | |||||||
|
| ||||||||
