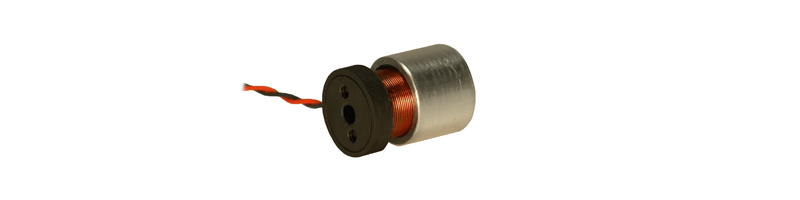

Linear Voice Coil Motor Actuator LVCM-032-025-02, Continuous Force: 1.5 lb (6.8 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.250 inch, 31.8 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-032-025-02 | 0.50 | inch | 2.1 | lb | 6.6 | lb | 1.00 | inch |
Datasheet in PDF  |
12.7 | mm | 9.3 | N | 29.3 | N | 25.4 | mm |

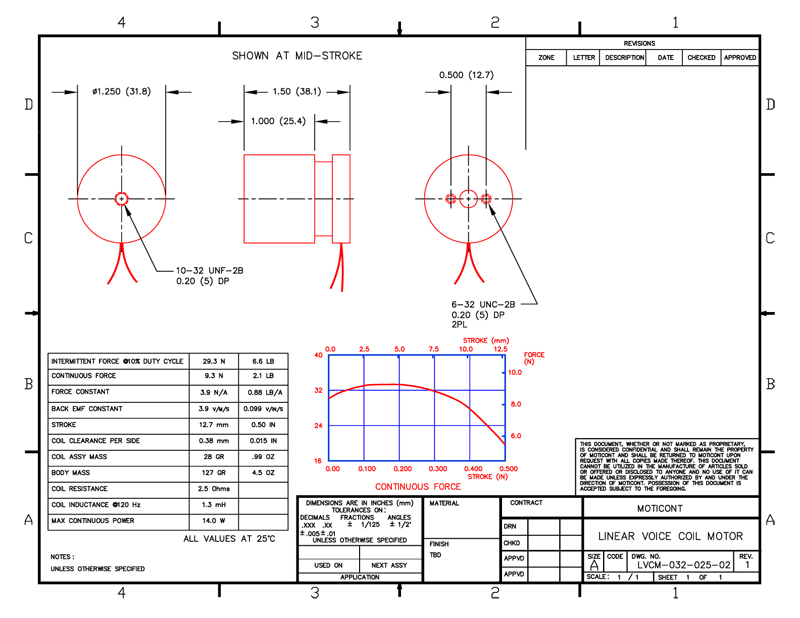

Drawing quick view
 |
Download 3D STEP | |||||||
